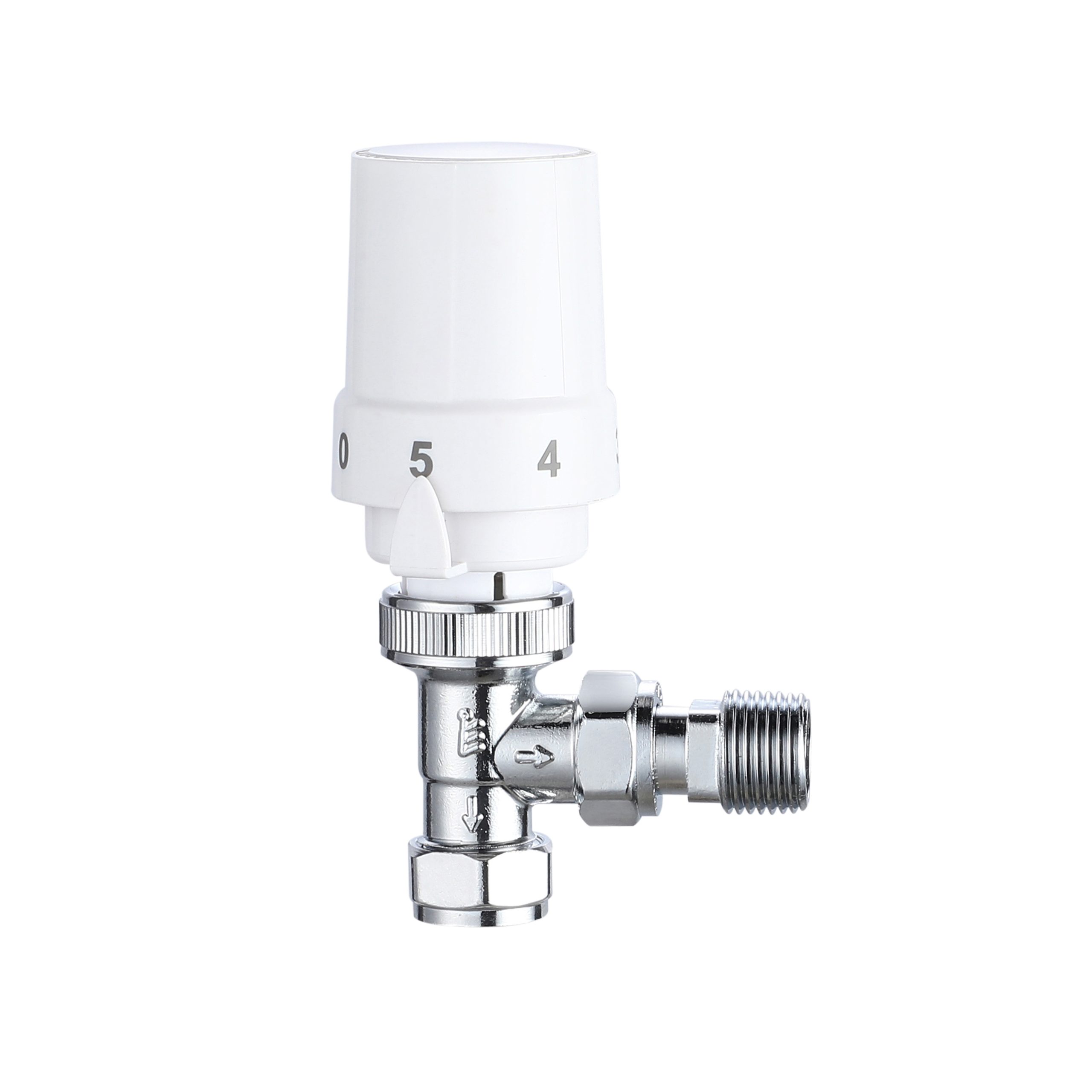

15mm x 1/2″ Angle Thermostatic Radiator Valve

MPN: 80332010

15mm x 1/2″ Angle Thermostatic Radiator Valve

A fully white thermostatic control head on a chrome plated valve body this simple and small profile valve is a ideal for minimal installations. It is a part of the cost effective range from BiWorld Fluid Control that allows this thermostatic radiator valve to offer reliability and quality. The thermostatic head contains a liquid sensor and is connected easily to the valve body using a large wheel nut.

Size

15mm

Colour

white and chrome

Finish

white TRV head with chrome plated valve

Weight (g)

258

Length (mm)

84

Width (mm)

67

Height (mm)

88

Lead-time

16 weeks from order date

Full Pallet Qty

1200

Box Qty

40

Layer Qty

240

Gross Weight Pallet Kg

445

Nominal Flow Rate Kg/h

150

Max Flow Rate Kg/h

470

Maximum working pressure bar

10

Max Pressure differential bar

1

Maximum water temperature ºC

100

Maximum ambient temperature ºC

50

Temperature Adjustment range ºC

0-28

Response Time (min)

24
